Button Thermostat F50

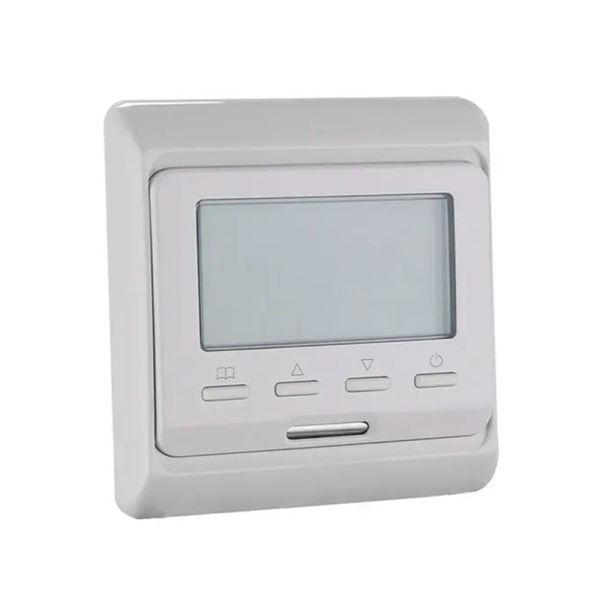

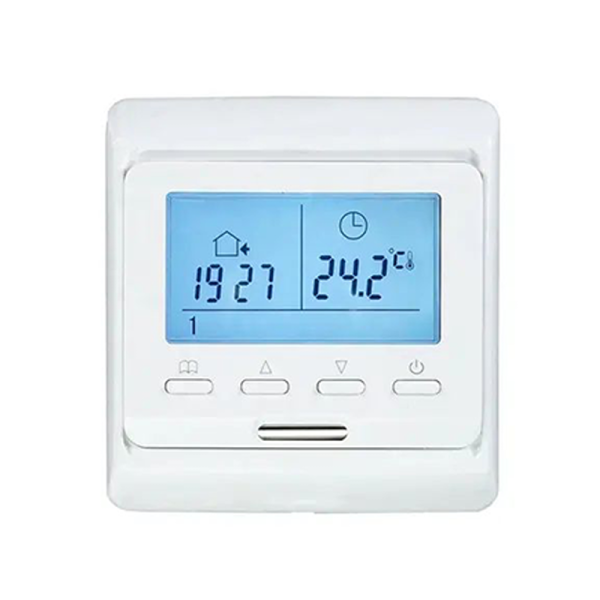

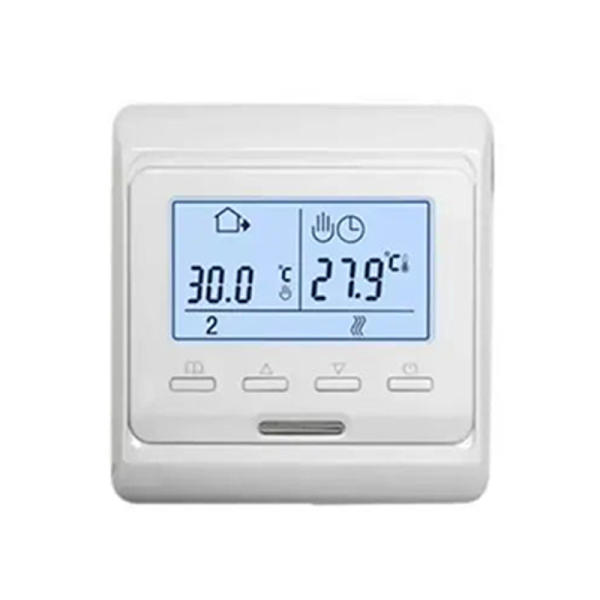

This digital button thermostat is a wall-mounted temperature controller specially designed for electric underfloor heating systems and electric heat trace cables. Adopting an intuitive button operation design and clear LCD display, it precisely monitors ambient temperature and automatically regulates heating output. Users can set target temperatures, switch operation modes and activate weekly timing schedules simply via front physical buttons. Widely applied in residential houses, commercial offices, workshops and pipeline heat preservation projects to maintain a stable and comfortable temperature environment.
Features
- Intuitive four-button operation for simple parameter setup
- Dual-temperature LCD screen, visual working status indication
- 7-day programmable timer for optimized energy efficiency
- Precise constant temperature control with overheat safety protection
- Standard 86-type wall mount, elegant white plastic housing
- Compatible with electric floor heating and water heating systems.
Specification
| Heating System | Electric | Application | Indoor |
| Acceptable Voltage Range | AC 220 V | Material | OTHER |
| Feature | Easy Installation | relay | 16A |
| Voltage | 220V | Design Style | Traditional |
| Type | Floor Heating Systems | Warranty | 2 Years |
| After-sale Service | Online Technical Support | Project Solution Capability | graphic design |
| Place of Origin | Anhui, China | Brand Name | UF |
| Model Number | F50 | Power consumption | 2W |
| Setting range | 5~90°C | Limitation differential | 5~60°C |
| Switch differential | 0.5~10°C adjustable factory setting ±1°C | Ambient temperature | -5~50°C |
| Protective housing | IP20 | Housing material | anti-flammable PC |
