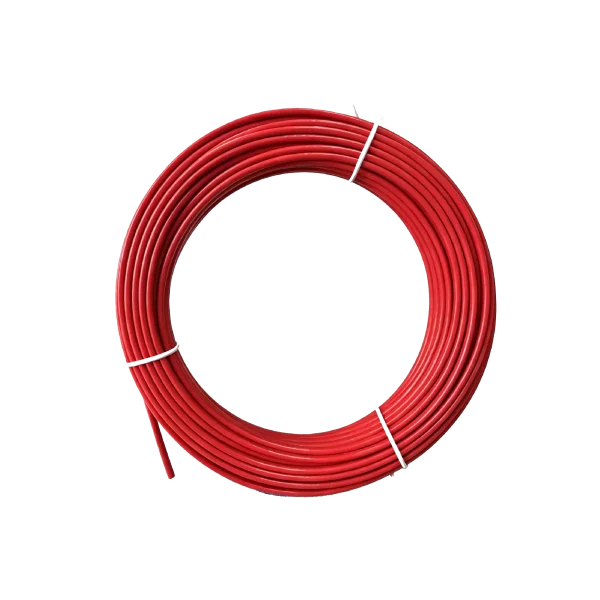

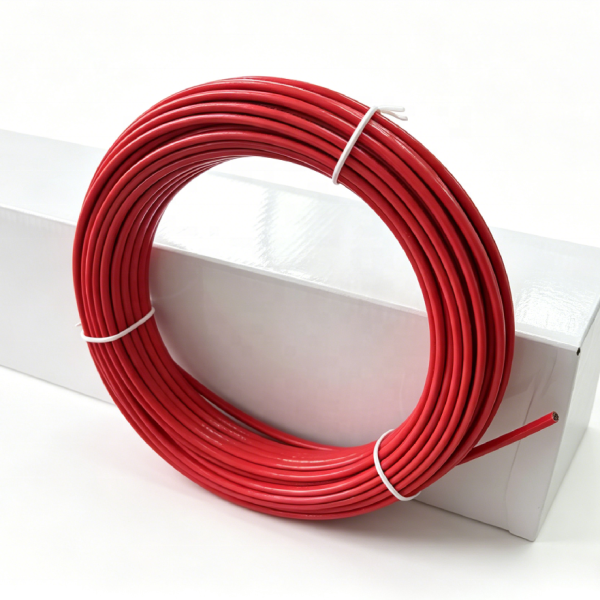

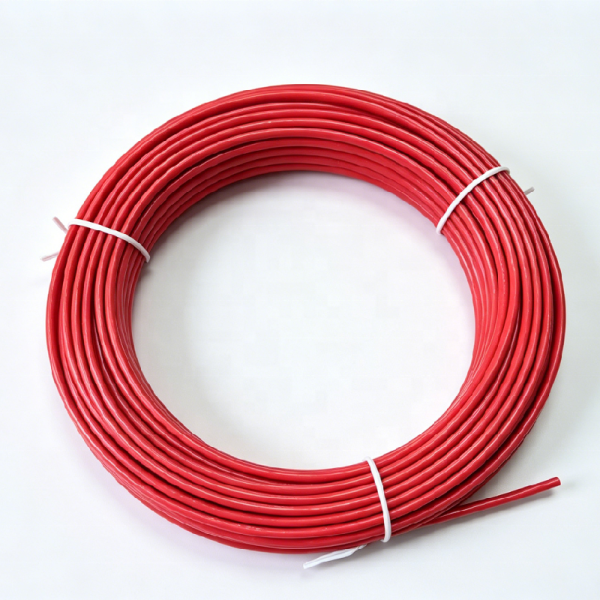

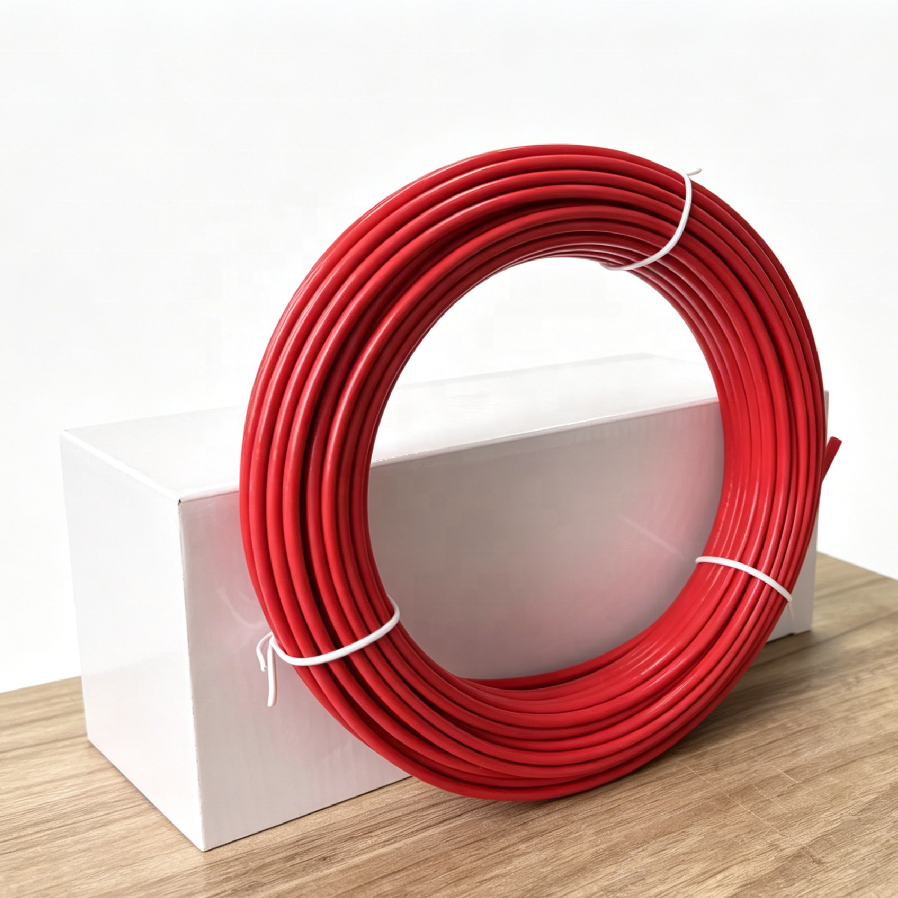

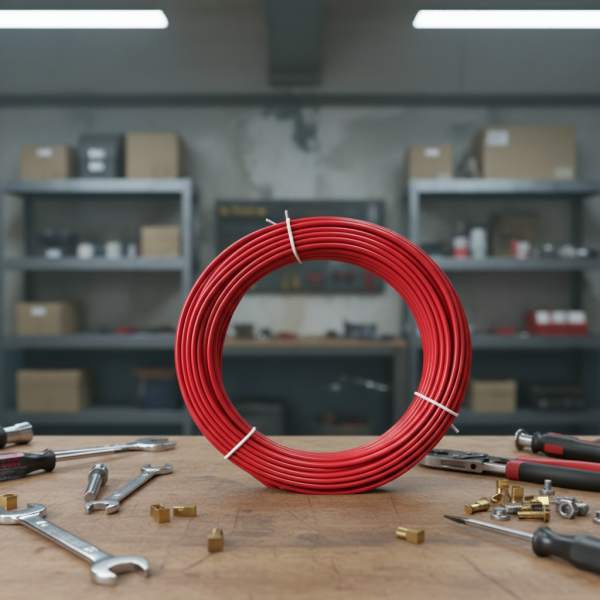

Series constant wattage heating cable UFC
The series constant wattage heating cable is a professional integral electric heating solution with series circuit structure. It delivers continuous, stable and uniform power output across the entire cable length. Designed for long-distance pipeline heat tracing, tank insulation and large-area snow melting, it provides reliable high-power heating performance for industrial and municipal engineering projects.
Features
- Consistent Constant Power Heating
- Support Long-distance Laying
- High-strength Multi-layer Protection
- Stable Continuous Operation Performance
Specification
| Application | Industrial, Outdoor | Conductor Material | Tinned Copper |
| Number of Conductors | Single, 2 Cores, 3 Cores | Insulation Material | fluoropolymer |
| Jacket | fluoropolymer | Length | / |
| Place of Origin | Anhui, China | Model Number | UFC |
| Brand Name | UF | Type | Heater Cables |
| Cable construction | Single, Twin or three conductor | Supply Voltage | Maximum 600V |
| Output power | 40w/m or 25w/m | Min. bending radius | 25mm |
| Insulation | fluoropolymer | Outer Jacket | fluoropolymer |
| Max. exposure Temperature | 400°F(205°C), power off | Min. Installation Temperature | -40°C |
| Chemical resistance | Organic and inorganic corrosives | Cable resistance @ 68°F (20°C) | 15Ω/km |
