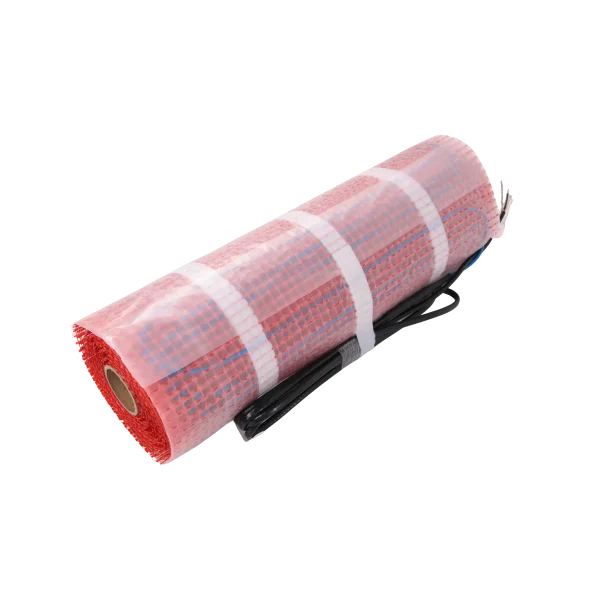

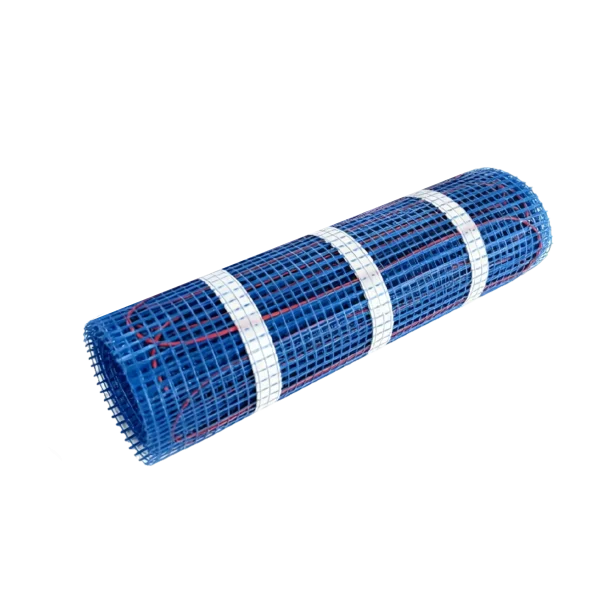

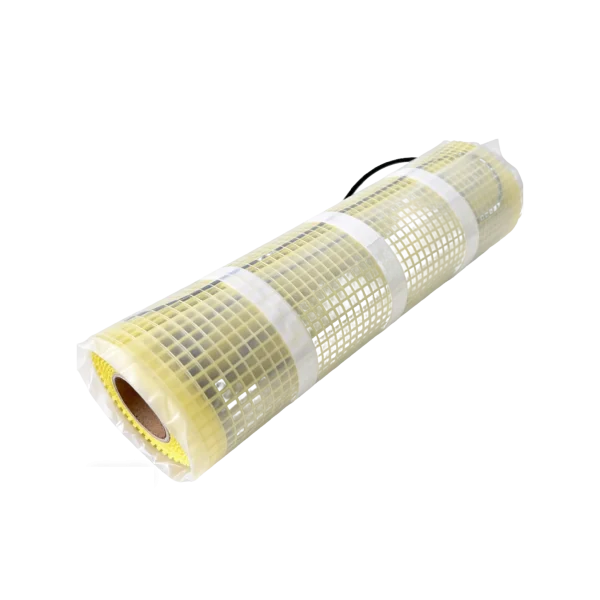

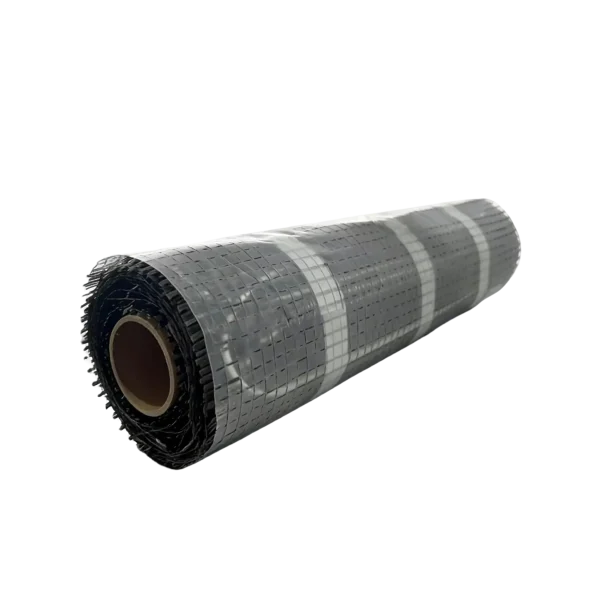

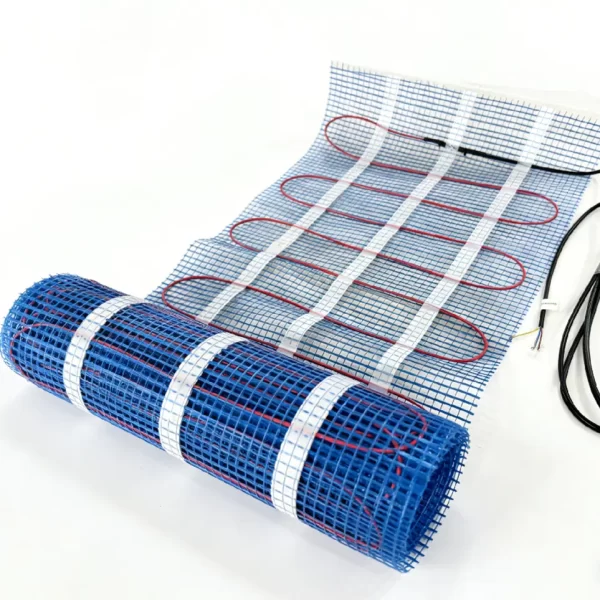

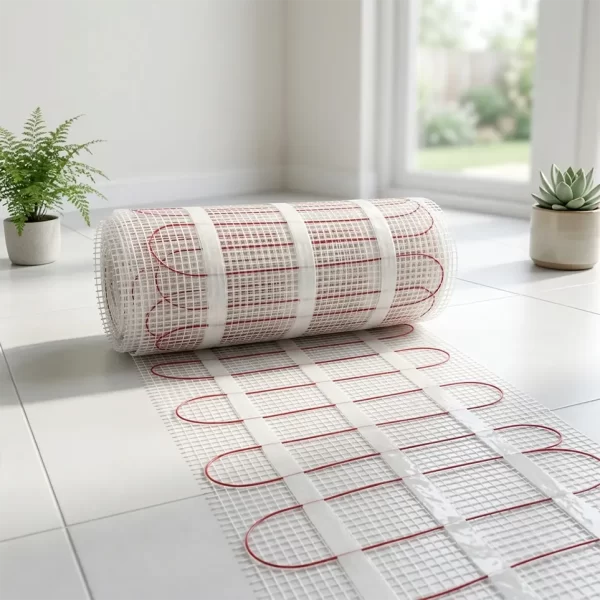

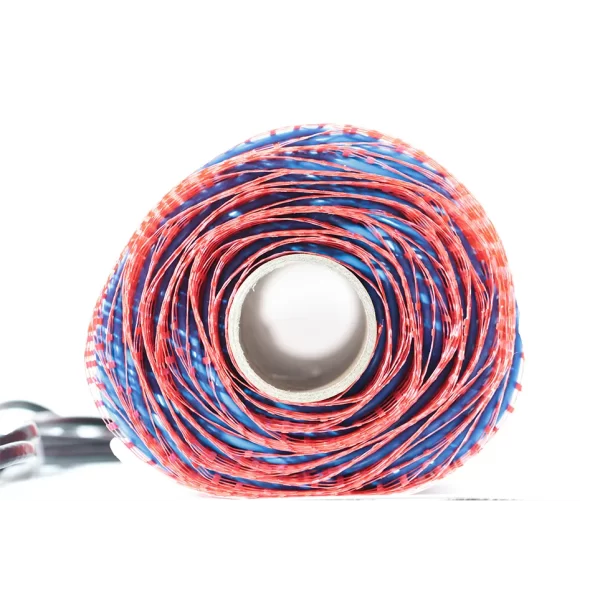

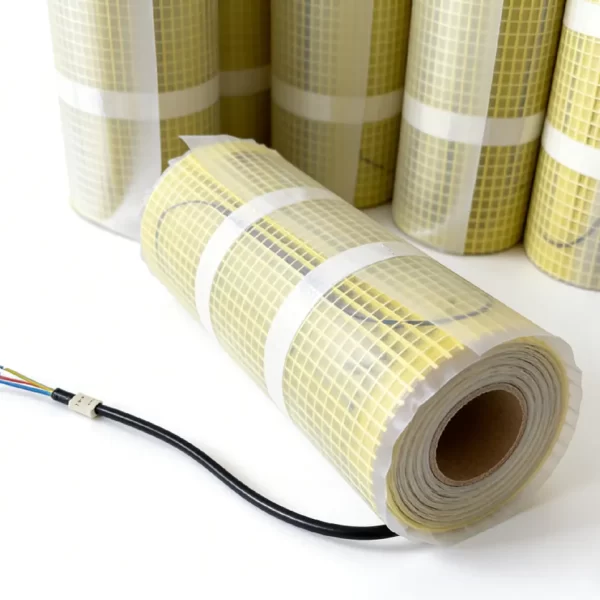

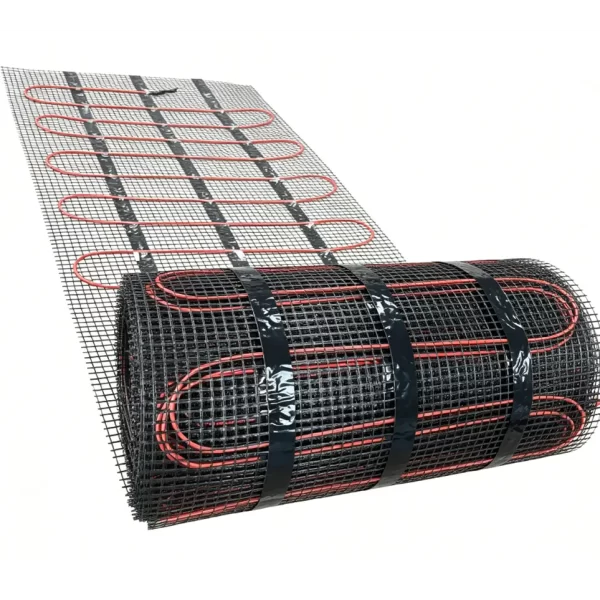

Underfloor heating mat UMAT
The underfloor heating mat (mesh mat) is a professional auxiliary laying accessory for floor heating systems. Made of high-tensile fiberglass material with uniform mesh structure, it is designed for fixing heating cables, enhancing floor integrity and preventing cracking. It is an essential supporting material for standard floor heating construction, which is adaptable to diverse floor coverings, tile, concreted or laminated floor, it can deliver comfortable, uniform heating across any room, offer a reliable, energy-efficient alternative to traditional radiators, enhancing comfort and property value.
Features
- High Tensile & Structural Stability
High-strength fiberglass weaving structure provides excellent tensile strength and dimensional stability. It effectively disperses floor stress and prevents floor deformation and cracking after long-term heating cycles. - Precise Cable Positioning & Fixing
Standard uniform mesh holes allow neat and fast cable clamping and fixing. It keeps heating cables in standard spacing without displacement or overlapping, ensuring uniform heating effect of the whole floor. - Anti-aging & Corrosion Resistant
Fiberglass material features acid and alkali resistance, anti-corrosion and high temperature resistance. It does not age or deform under long-term floor heating and buried environment, maintaining stable structural performance. - Lightweight & Easy Construction
Flexible and lightweight mesh mat is easy to cut, spread and fit the ground. It fits perfectly for various room shapes and floor heating laying processes with high construction efficiency.
Specification
| Heating System | Electric | Application | Hotel, Apartment, Kitchen, Bathroom, Underfloor |
| Acceptable Voltage Range | 230V | Material | Fiberglass |
| Feature | Water Resistant, Flexible, Durable, Easy Installation | relay | / |
| Voltage | 230 V | Design Style | Modern |
| Type | Floor Heating Systems | Warranty | More Than 5 Years |
| After-sale Service | Online Technical Support | Project Solution Capability | graphic design |
| Place of Origin | Anhui, China | Brand Name | UF |
| Model Number | UMAT | Cable construction | Twin conductor |
| Output power | 100W/m² & 150W/m² & 200W/m² | Cable Spacing | 93mm(100W/m²) & 80mm(150W/m²) & 80mm(200W/m²) |
| Cable Diameter | 3.6-4.0mm | Insulation | Fluoropolymer |
| Outer Jacket | PVC | Max. Ambient Temperature | 85°F(30°C) |
| Min. Installation Temperature | 40°F(5°C) | Cold lead | 2-wire plus ground braid; 2.5m length |
| Heating Area | 0.5~12m² |
